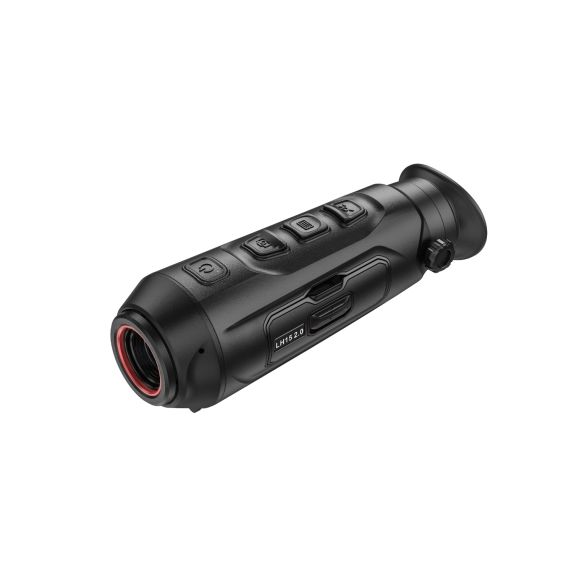

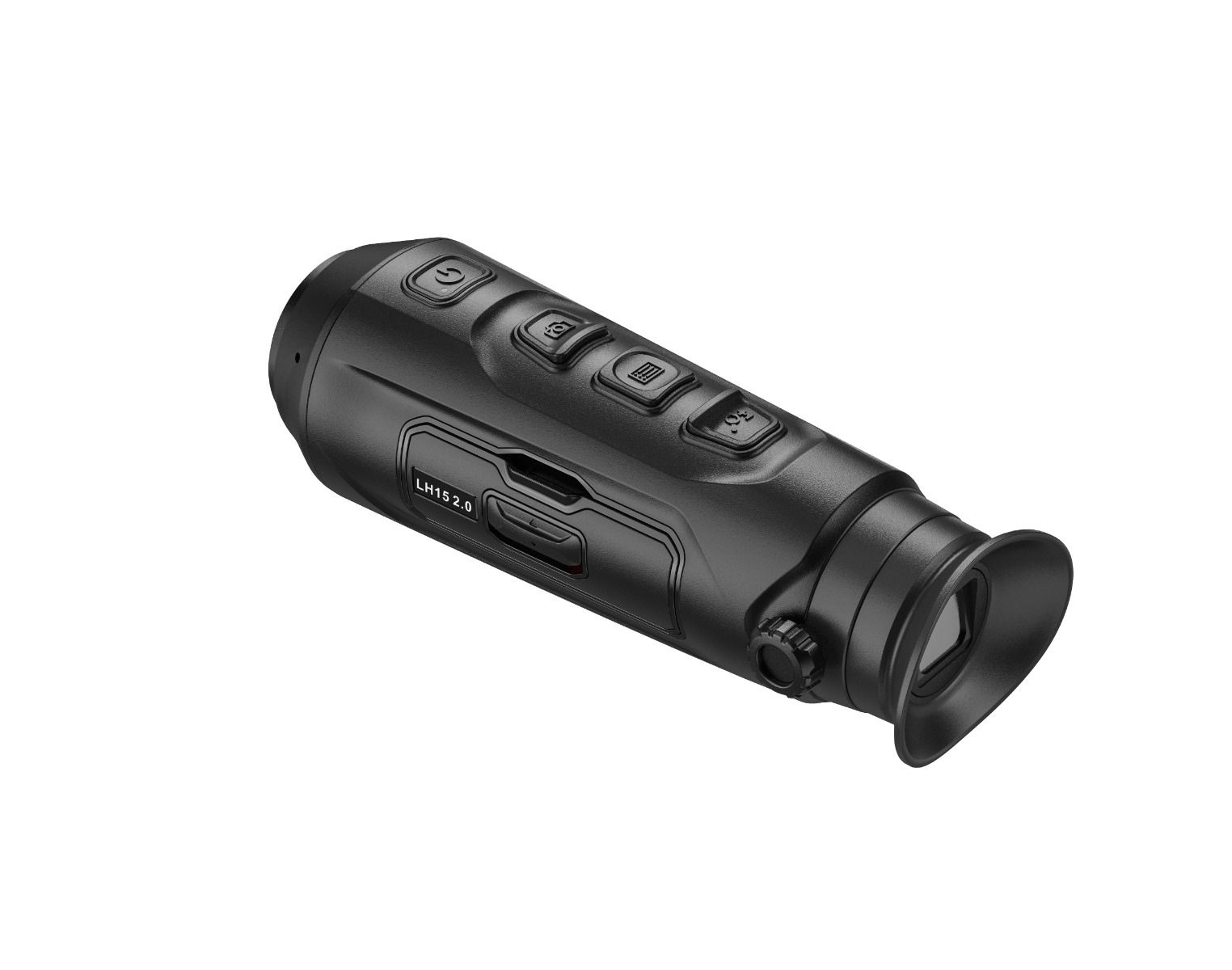

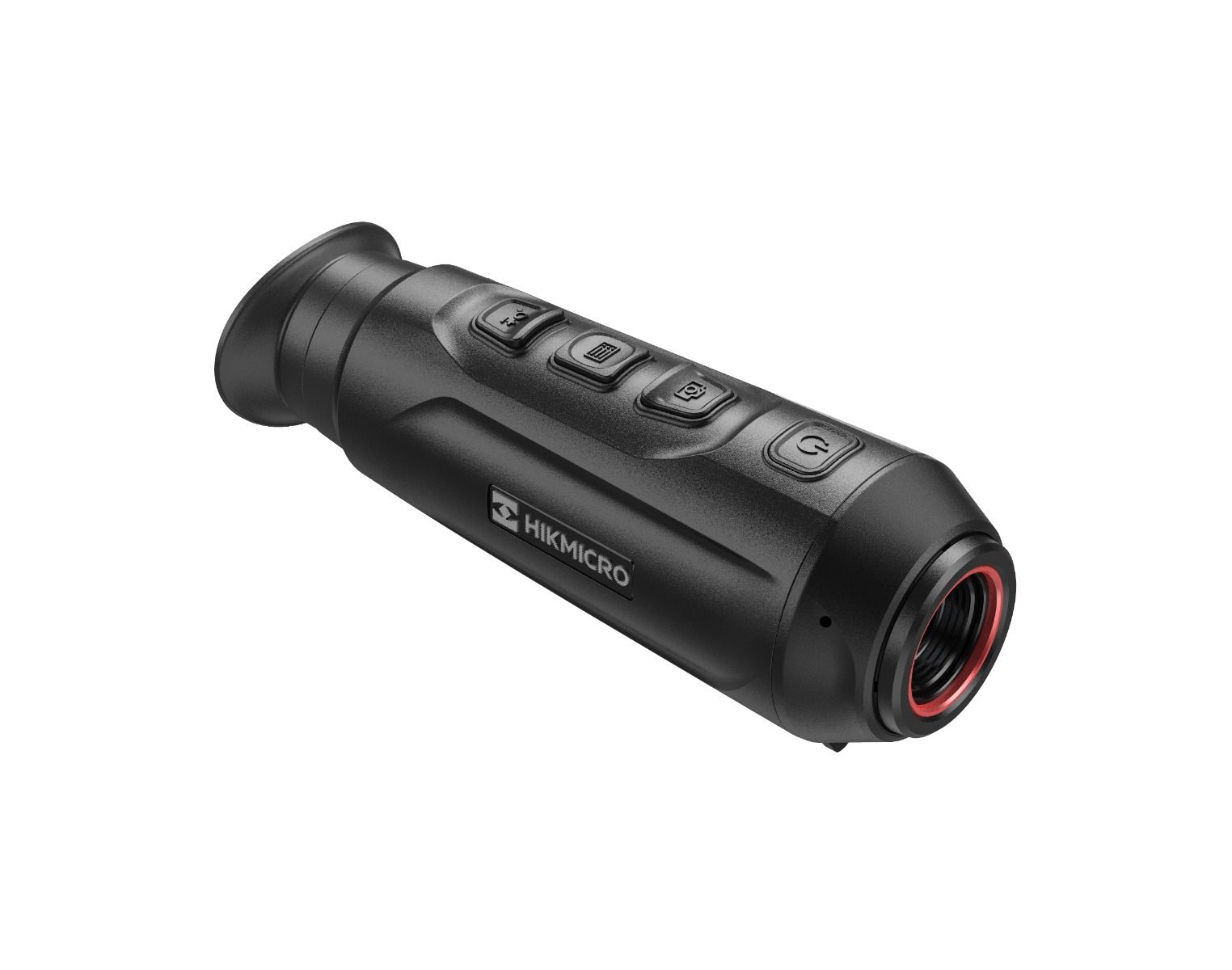

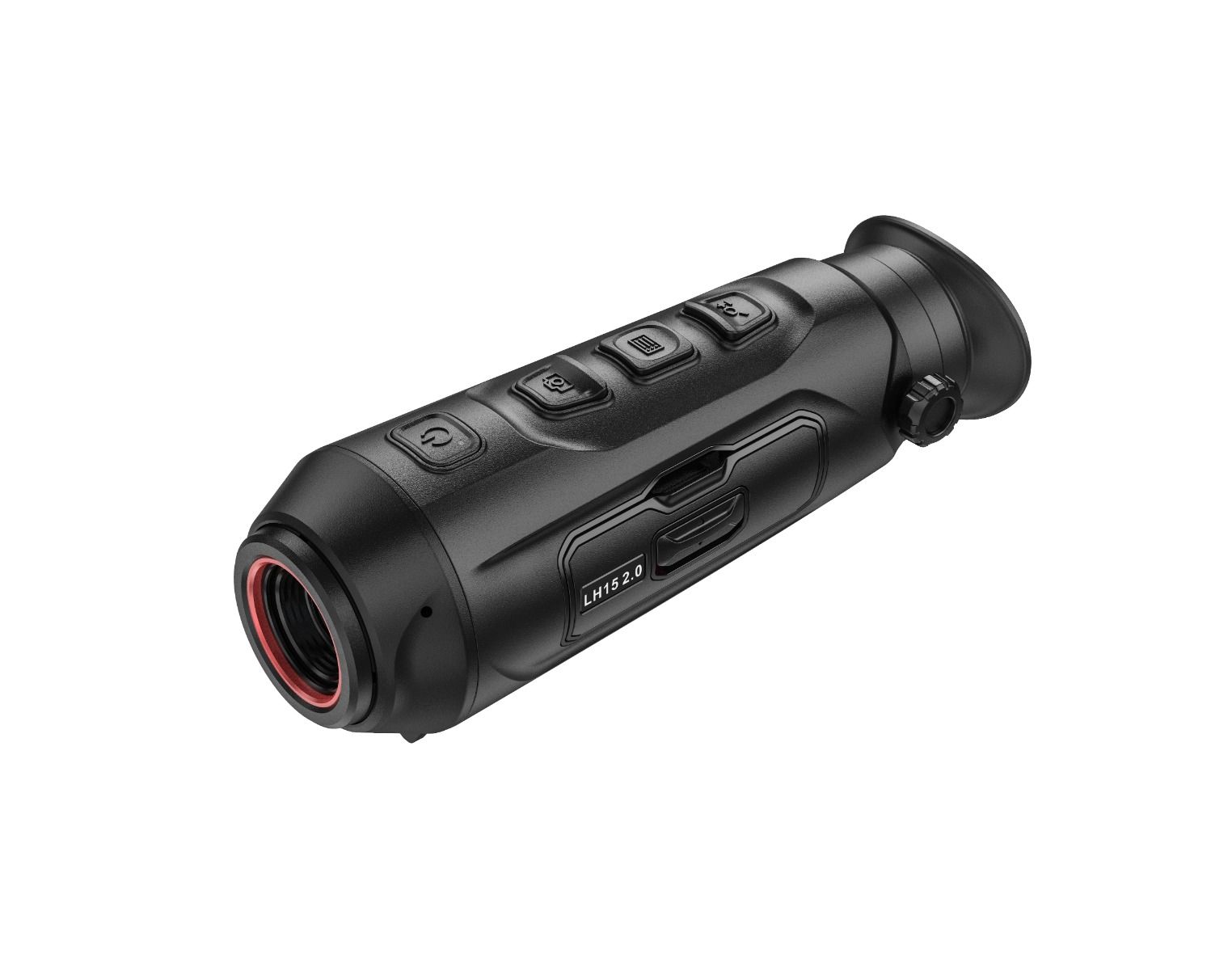

Hikmicro Lynx LH15 2.0
Disponibile
SKU
HM-LH15-2.0
818,85 €
The HikMicro Lynx 2.0 LH15 is the most compact and wide-view model in the new Lynx 2.0 series, delivering professional-grade thermal imaging in an ultra-portable design. Featuring a high-sensitivity thermal sensor, fast startup, and intuitive controls, the LH15 2.0 is the ideal entry-level thermal monocular for scanning wide terrain, detecting heat signatures quickly, and operating in any light condition.
General properties
| Manufacturer | Hikmicro |
|---|---|
| Thermal Monocular Series | Hikmicro Lynx 2.0 |
| Made in | China |
| In production since | 2024 |
| Warranty | 3 years |
| SKU | HM-LH15-2.0 |
Optical properties
| Variable magnification | Yes |
|---|---|
| Magnification. | 1.40 x |
| Minimal magnification. | 1.40 x |
| Maximum magnification. | 11.20 x |
| Diopter range | -5/+3 dpt |
| Lens diameter. | 15.00 mm |
| Field of view... | 308.00 m/1000m |
| Field of view (deg.). | 17.50 ° |
| Max. field of view... | 308.00 m/1000m |
| Eye relief. | 20.00 mm |
| Close focus. | 1.50 m |
| Lens aperture | F 1.0 |
| Range of detection. | 750.00 m |
| Optical zoom | No |
Thermal sensor properties
| Thermal sensor type | VOx Uncooled |
|---|---|
| Thermal sensor resolution | 384x288 |
| Thermal sensor pixel count. | 0.11 MP |
| Pixel pitch. | 12.00 μm |
| NETD. | 20.00 mK |
| Refresh Rate. | 50.00 Hz |
| Calibration mode | Automatic, Manual |
| Temperature sensitivity. | 20.00 mK |
Display properties
| Display type | OLED |
|---|---|
| Screen Resolution | 1024×768 |
| Display pixel count. | 0.79 MP |
Recording properties
| Image Capture | Yes |
|---|---|
| Video recording | Yes |
| Video output | Yes |
Physical properties
| Length. | 164.00 mm |
|---|---|
| Width. | 56.00 mm |
| Height. | 60.80 mm |
| Weight. | 272.00 g |
| Working temperature range | -30°C to +55°C |
| Power Supply | Rechargeable Battery |
| Battery life. | 6.50 h |
| Focusing system | - |
| Color | Black |
Special features
| Waterproof | Yes |
|---|---|
| Fogproof | Yes |
| Special features | Fogproof, Shockproof, Waterproof |
| Connectivity | Wifi |
| Tripod adaptable | Yes |
| Built-in rangefinder | No |
| Image stabilizer | No |
| PRODUTTORE | Hikmicro |
|---|
