InfiRay DTC300 17µm body temperature station

Automated two-channel body temperature measuring camera

Temperature measurement with a thermal camera

In the last two decades, we have heard several times about new types of viral infectious diseases, in 2002 about the SARS virus, in 2012 about MERS and bird flu, but we observed them from a distance and did not really feel their health or economic effects. However, the latest coronavirus has now reached our continent and even our country, threatening serious public health risks and serious economic damage. It spreads quickly and easily in workplaces with large numbers of people and at mass events, so it is literally vital and in our common interest to screen out individuals suspected of infection and limit the spread of the infection.

One of the most easily visible symptoms of a person infected with the coronavirus is fever, which can be measured quickly and efficiently even in larger groups with a suitable thermal camera.

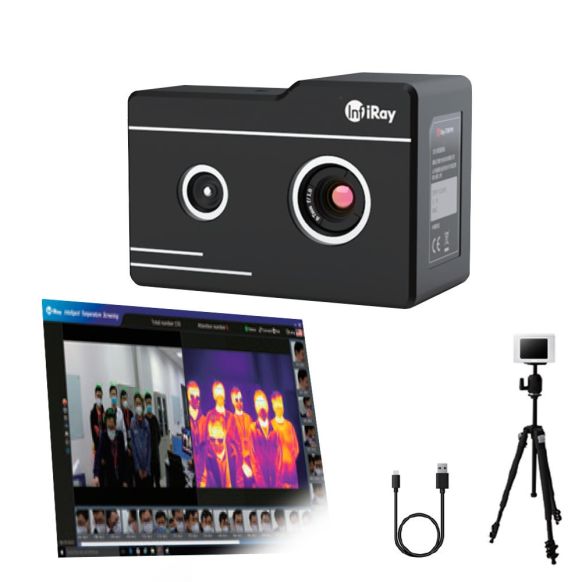

InfiRay DTC300 is a compact, two-channel body temperature measuring camera. Its two lenses serve a dual purpose. One channel provides only a thermal image and accurate temperature data in the temperature range of the human body, while the other channel provides the visual image - guaranteeing double identification - of people with elevated temperature and fever symptoms.

Its compact dimensions, high resolution and easy, fast control make it an ideal choice for security gates, access platforms, factory or even office building entrances for continuous control.

The operating temperature range of the camera is between 0 and +60°C, within which it works with excellent accuracy (+/-0.5°C) in the +33 - +42°C interval, but it is even more precise when used with the accessory Black Body , can be accurate to +/-0.3 °C.

In addition to the fully automatic mode, the included intelligent software can be parameterized in countless ways, and is capable of point-based, line-based, and area-based temperature measurement. Several colors can be displayed on the display. The software automatically alerts when the set temperature is exceeded, and depending on the setting, it can record the face in problematic cases, or video recording can also be set as required. Available software updates are available immediately.

Accessories:

The DTC300 set includes the thermal camera. The manufacturer includes 1 stand for placing the Black Body with the set, and in addition to the cables necessary for operation, the software for operation is also included with the device.

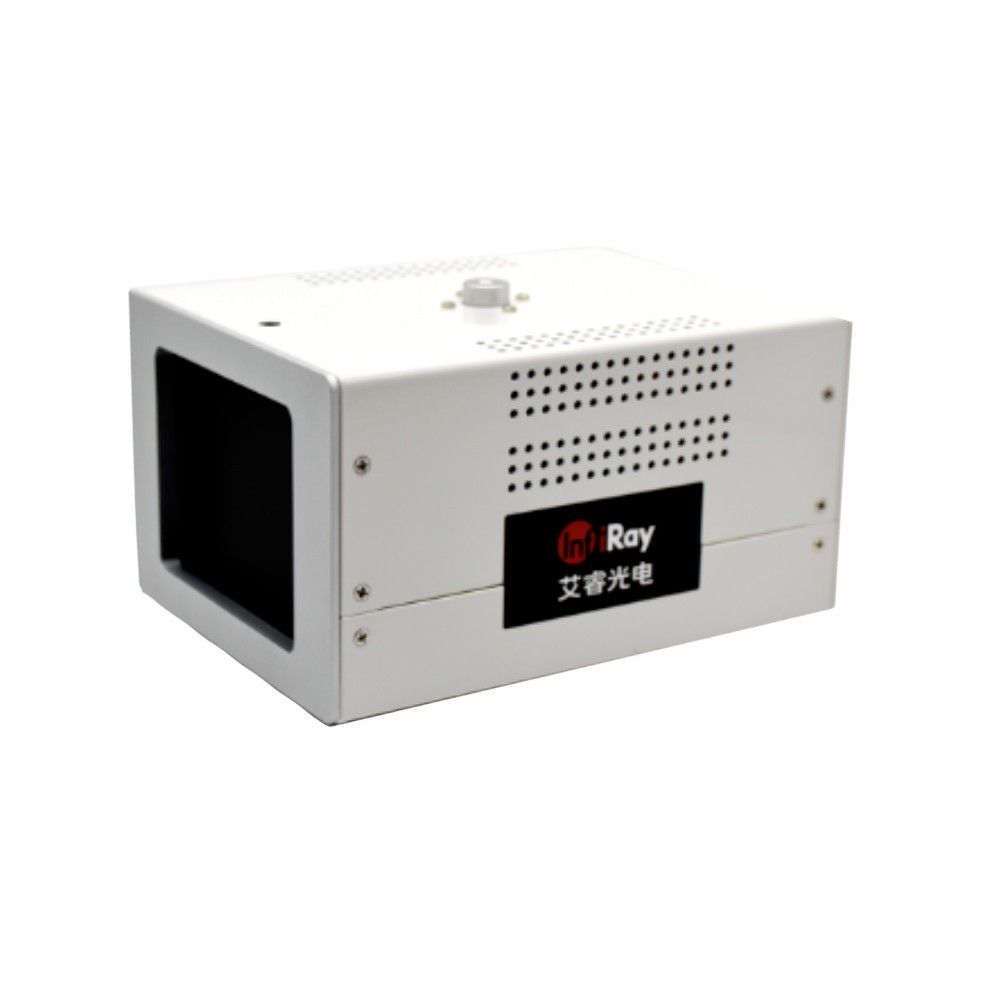

Black Body accessory.

Hardware requirement:

• CPU: i5-9500T or higher

• Memory: >8GB

• System: Windows 10 64 bit

• Graphics card: with graphics processor and Vulkan support

• Network: Gigabit Ethernet

• Minimum Full HD display

Software support is provided. The thermal camera can be installed extremely quickly with the participation of an IT specialist. However, in the absence of an expert colleague, we recommend purchasing the DTC300 set, which can be put to work immediately even without a specialist qualification.
